Dynamic Microphone unit

ETP-FR-426-NB

Features

l         Uni-directional

l         Neodium high power magnet

l         -57dB High sensitivity

l         Drip proof cloth

l         Impedance choice (200 〜 600 Ω)



Applications

l         Talk-back mic.

l         Headset

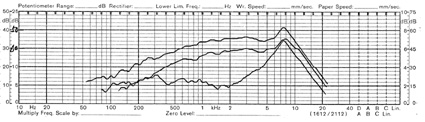

Frequency characteristics

Specification

Type	Dynamic microphone unit
Sensitivity	-57dB+/-3dB (0dB=1V/Pa, 1KHz)
Polar pattern	Uni-directional
Output Impedance	xxΩ +20%, -10% (200 〜 600 Ω)
Weight	9g
Size	19φx 11.5(t) mm
